- ToS Diffserv, 802.1p/Q
- VAD, CNG, Packet Loss Compensation, Adaptive Jitter Buffer
Dial Tone Signal Generation
- DTMF (Out of Band and in Band)
- RFC 2833
Configuration
- IP Address Assignment
- DHCP client or fixed
Configuration Support
- Keypad & LCD
- Web browser management with 2 Levels (User and Admin)
- TFTP/HTTP server download
- Local & remote warm reboot
- Configuration protected by password
Physical & Environmental Mounting
- Footstand
Power Input
- DC 48V
- 100V/60Hz to 220V/50Hz full range autoswitching)
- Power over Ethernet (802.3af)
Operating Temperature
- From 0° to 50° C (32° / 104° F)
Storage Temperature
From -5° to 80° C (-40° / 158° F)
Humidity
- Up to 95% non-condensing
The device is delivered with AC adapter and no additional license fee is needed.

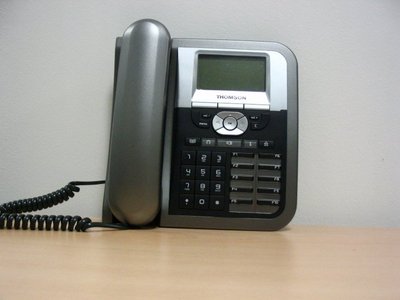

In this tutorial we are going to show you how to set up your phone to work with the open-source Asterisk PBX.
2) On the back of the phone there are three RJ-45 ports. They are labeled as PC, LAN and EXT.
Put the Ethernet cable from your network in the port labeled LAN.
Use another UTP cable to connect your computer with the phone. Put this cable in the RJ-45 jack labeled PC.
The EXT port is for an additional hardware extension with speed-dial numbers
3) Plug the cord of the Handset in the RJ-11 port placed on the left side of the phone device (the one marked with a handset) or if you want to use a headset the plug it in the RJ-11 port marked with a headset.
4) Plug the power cord in the phone.
3. Configurations on the Thomson ST2030 IP PHONE
There are two possible ways to configure your Thomson ST2030 IP Phone. The first one is through the telephone itself and the second way is to use the Web interface.
Also there are two levels of access - user and administrator independent of the used configuration way (from the Web Interface or the telephone device).
Lets take a look at the configurations through the phone device.
The phone has 3 soft buttons which are used to perform different operations.
In order to make changes press the big OK button or the menu button you will see three possible choices - user, admin and options.
The user section does not require password. Through this section you could perform the following operations:
- Personalize your phone. You could change the displayed name. You could change the ring tone. You could adjust your Date and Time. You could change the language and you could turn on/off the keypad tones.
- Set an alarm clock
- Adjust the contrast
- Change the PIN code. By default it is set to 0000
- Set two shortcut keys
- Set numbers to the 10 Quick Dial keys
- Retrieve information about the Firmware version, Hardware version, IP Address, MAC address, Gateway and Subnet mask
The option section allows you perform the following operations:
- You could turn on/off the DialSubscribe, CallBlocking, CallForwarding, AnonymBlock, AutoAnswer, AutoReject, AutoStop, AutoTurnOffSPK, NumberDisplay, DoNotDisturb and PhoneLock
- You could reboot the device
The administrator section requires password. By default it is 784518. Through this section you could perform the following operations:
- Change the Network configuration - You could change the Network mode: Fixed-IP, DHCP or PPPoE. You could change the IP address, the gateway, the subnet mask, primary DNS and secondary DNS.
- PPPoE - if you choose the PPPoE network mode, then here you could set the username and password for the connection of this type.
- NTP set up - set the IP address of your NTP server and the timezone.
- SIP configurations - You are allowed to make up to four different profiles. However, only one profile could be active at a particular moment.
For each profile you could change:
- The profile name
- Name
- Proxy server
- Registrar Server
- Registrar ID
- Registrar Password
- DisplayName
- Telephone Number
- BP Server (I guess this is backup Proxy Server)
- BR Server (I guess this is backup Registrar Server)
- Emergency DialPlan - here you could set the numbers for emergency cases
- Reset to Factory Default Settings
Configurations through the Web Interface
As a user no password is required and of course the your rights are limited.
As a user you will be allowed to turn on/off the Call Waiting, Call Parking, Privacy Call and Anonymous Reject.
Also you could configure the Quick Dialing, Call Forwarding, Call Blocking, Different Timeouts like Dial-out, Automatic turn off speaker, Automatic call reject, Automatic Answer and Stop Placing call, if the called party does not answer.
The user rights include the adding of phonebook entries, ping testing, phone lock, changing the username and password used for the user access mode and restarting.
The administrator has full access and rights. However, to enter as administrator is not as easy as you think.
I do not know whether this is a bug or it is made on purpose, but in order to actually log in as administrator you have to do the following:
1) Log in through the Web Interface either as user or administrator. You will notice that you have only user rights.
2) Restart the phone device, while you are still logged in
3) You will notice that as soon as the device boots up new functions will appear on the web page as well as prompt for username and password
4) The default username and passwords are administrator and 784518
5) Now you could start making changes
4. Asterisk PBX configuration
1) sip.conf
We need to create one user in the sip.conf file. This is because the phone is using the SIP protocol, for a connection with the Asterisk PBX.
So, we have created the user user1. This one will be used with our Thomson ST2030 IP Phone.
Type=friend means that the user could make and receive calls. Host=dynamic means that the IP is not static but dynamic through a DHCP server. Disallow=all - means that the line will not support any codecs. However, below this option we have allow=ulaw, allow=alaw and allow=gsm. This means that the line will support these three codecs - ulaw, alaw and gsm. It is important to write the options exactly in this order. First you write the disallow=all option and then the allow options. Otherwise, if you write the disallow option after the allow options, no codecs will be supported by the line. Context=test - this shows that the user is working with the extensions in this context of the configuration file extensions.conf.
We will create our extensions in the [test] context of the extensions.conf file.
We have to numbers - number 100, where the thomson telephone could be reached and number 200 where our idefisk softphone could be reached.
For each number we have 3 extensions. The first one contains the Answer application, which job is to answer the channel.
The second extensions contains the Dial application. As argument in its brackets we have SIP/thomson or IAX2/idefisk. IAX2 or SIP are the channels, which will be used to connect a define telephone. thomson or idefisk are the users, defined in the iax.conf file or sip.conf file (depending on the used channel). The phones are using this users to register on the Asterisk Server.
The third extension contains the Hangup application. It is used to hang up the channel when the conversation is over.
For more information about how to make the configurations in the Asterisk's configuration files please read our tutorial about the Configuring IP Phones for use with Asterisk
5. How to configure your Thomson ST2030 to work with Asterisk
1) Through the telephone device
Press either the OK or the menu button.
Press the middle softkey to enter the administrator section. When you see the password prompt - type 784518 which is the default administrator password. In order to be able to type digits you have to change the keyboard mode. You could do this through the right softkey.
Go to the Networking section and set your IP address, subnet mask, default gateway and DNS server IP address.
Once you are ready go back to the main administrator section and find the SIP Configuration menu.
From this menu choose a desired profile. For example: Profile 1
Now you have to make the profile configurations.
First you could change the name of the profile. Then you could set the Name, which you would like to be displayed on the phone screen. The next options are for Proxy Server and Registrar Server. Here you have to type the IP address of your Asterisk PBX. In our case it is 10.3.3.34. In your case could be different.
Next are Registrar ID and Registrar Password. In our case we will set both to thomson, because these are the username and secret configured in our sip.conf file. They will be used by the phone device to register on our Asterisk.
There is one option which is labeled as TelNbr - this one has to be configured with the username. In our case it is thomson and we have configured it with this word, otherwise the phone won't register to the Asterisk server successfully.
Once this is done your Thomson ST2030 is ready to be used. In our example we will test it by dialing number 200, which as you could see in our extensions.conf file, is used to Dial our Idefisk Softphone.
Below, you could see the steps described above in a tree structure:
1. OK or menu button
1.1. Administrator section (type 784518)
1.1.1. Networking
- Mode
- IP Address
- Gtway
- Mask
- PriDNS
1.1.2. SIP Configuration
1.1.2.1. Profile 1
- ID
- Name
- PxySrv
- RegSrv
- RegID
- RegPwd
- TelNbr
1.2. Option
- Reboot (OK)
2) Through the Web Interface

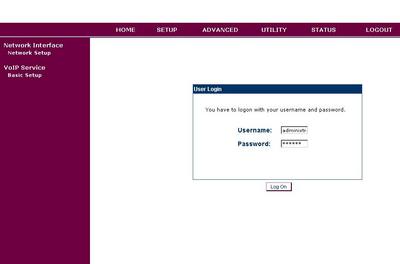

In order to actually log in as administrator you have to do the following:
1) Log in through the Web Interface either as user or administrator. You will notice that you have only user rights.
2) Restart the phone device, while you are still logged in
3) You will notice that as soon as the device boots up new functions will appear on the web page as well as prompt for username and password
4) The default username and passwords are administrator and 784518
5) Now you could start making changes

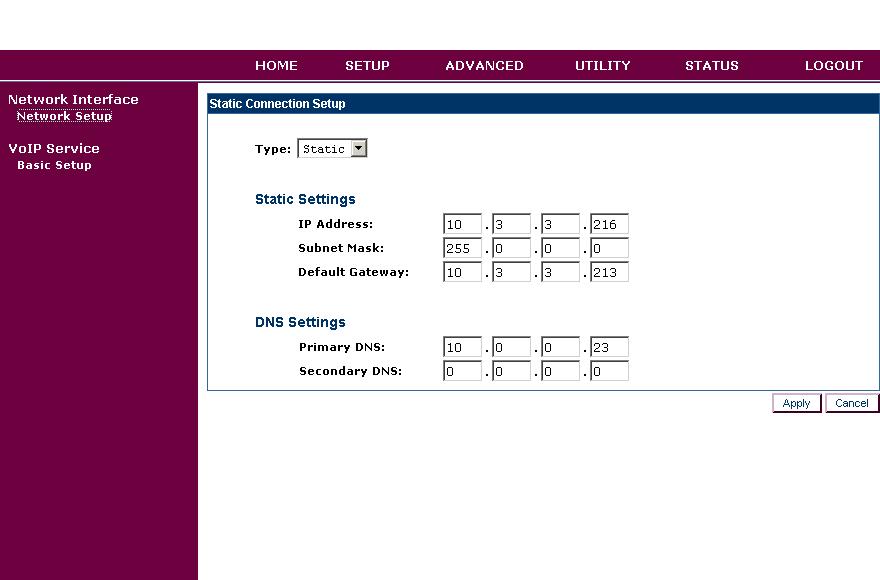

Choose Setup from the horizontal menu. Then, from the right menu choose Network Setup. This is the section where you could make the network configurations.
You could set the type - Static, DHCP, PPPoE
If static - then you could set the exact IP address, subnet mask and Default Gateway.
Also you could configure your Primary and Secondary DNS Server IP addresses.
The Setup section is also the place where you could change and edit the desired profile for a SIP Configuration.

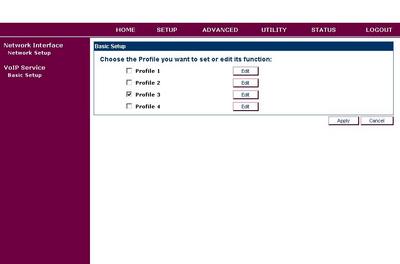

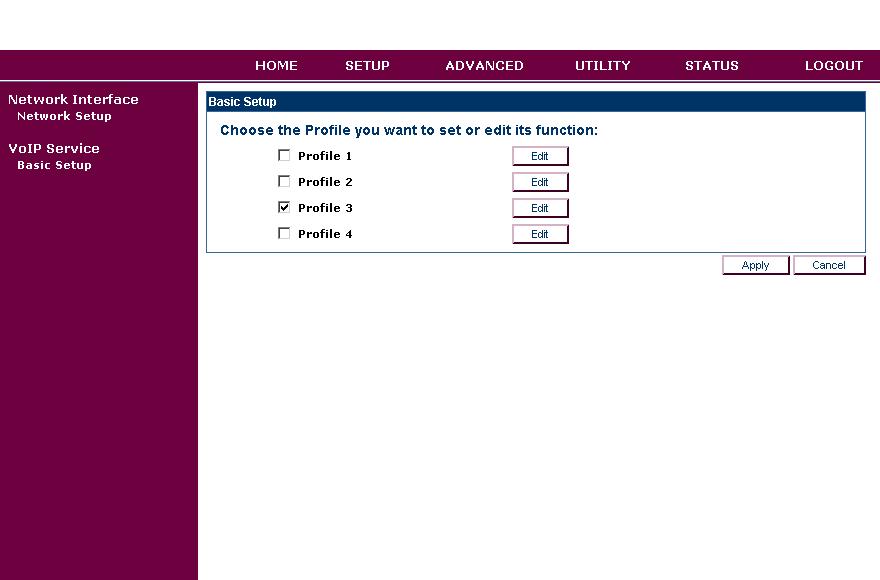

Just click on the Basic Setup from the right menu of the Setup section, and you will be allowed to choose between four profiles. Against each profile you could see an Edit button.
Press it and you will see a new screen, where you have to make your configurations

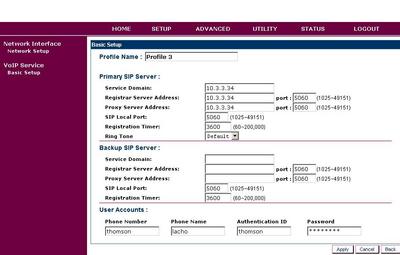

The Basic Setup section is divided into four parts: Profile Name, Primary SIP Server, Backup SIP Server and User Accounts.
The Profile Name section allows you to change the profile name
The Primary SIP Server section is where you have to configure the IP address, the port of your Asterisk Server. Also you could set the registration timer and a preferable ring tone.
In our case we have set IP address 10.3.3.34 for both Proxy and registrar servers. In your case the IP addresses could be different. We left the other setting by default.
The Backup SIP Server allows you to adjust the same things, but for your backup Asterisk.
The User Accounts section is the place, where you have to set your phone number, phone name and the Authentication ID and Password.
The Authentication ID and Password has to be the same as the ones set in the sip.conf file. In our case, both are set as thomson. In your case they could be different.
NOTE:There is a tricky moment here - as a phone number you have to set the same thing as the username. In other word, our username is thomson and that is why we have set the phone number to thomson. Otherwise the phone you will not be able to register on the Asterisk Server. At least in our case that was a problem.
Once you made these configurations you have to choose the desired profile.

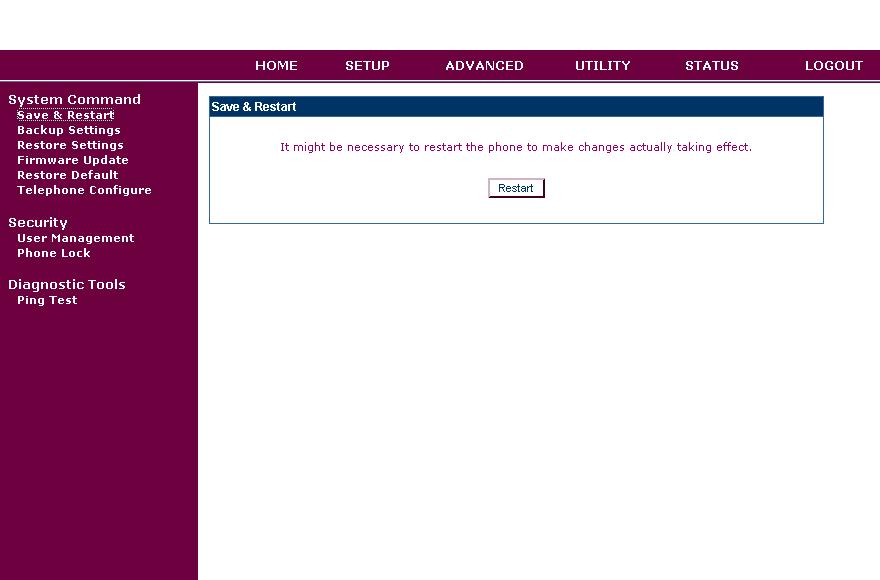

Then there is one more step - you have to save and reboot the device. For the purpose you have to choose Utility form the horizontal menu and then Save & Restart from the right menu.
Now you are ready to use your Thomson ST2030 IP Phone with your Asterisk Server.
In our case we will test it by dialing the number 200, which will connect us to our Idefisk softphone
Below, you could see the steps described above in a tree structure:
1. Setup
1.1. Network Setup
- Type
- Static Settings
- DNS Settings
1.2. Basic Setup
1.2.1. Profile 1 (Edit button)
- Profile name
- Service Domain (Primary SIP Server)
- Registrar Server Address (Primary SIP Server)
- Proxy Server Address (Primary SIP Server)
- Sip Local Port (Primary SIP Server)
- Registration Timer (Primary SIP Server)
- Ring Tone (Primary SIP Server)
- Service Domain (Backup SIP Server)
- Registrar Server Address (Backup SIP Server)
- Proxy Server Address (Backup SIP Server)
- Sip Local Port (Backup SIP Server)
- Registration Timer (Backup SIP Server)
- Phone Number (User Accounts)
- Phone Name (User Accounts)
- Authentication ID (User Accounts)
- Password (User Accounts)
1.3. Utility
- Save & Restart (Restart)

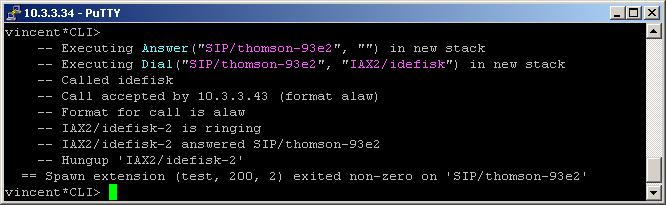

Screenshot from the Asterisk CLI
6. Additional information
In order to restore the factory settings of the phone, please do the following:
1) Through the Web Interface
Go to the Utility section (logged in as administrator) from the horizontal menu and then from the left menu choose Restore Defaults. You will be allowed to confirm.
2) Through the Phone Device
Press the OK or the menu button. Go to the administrator section (password 784518). Then go to the Reset Default option and press OK.
